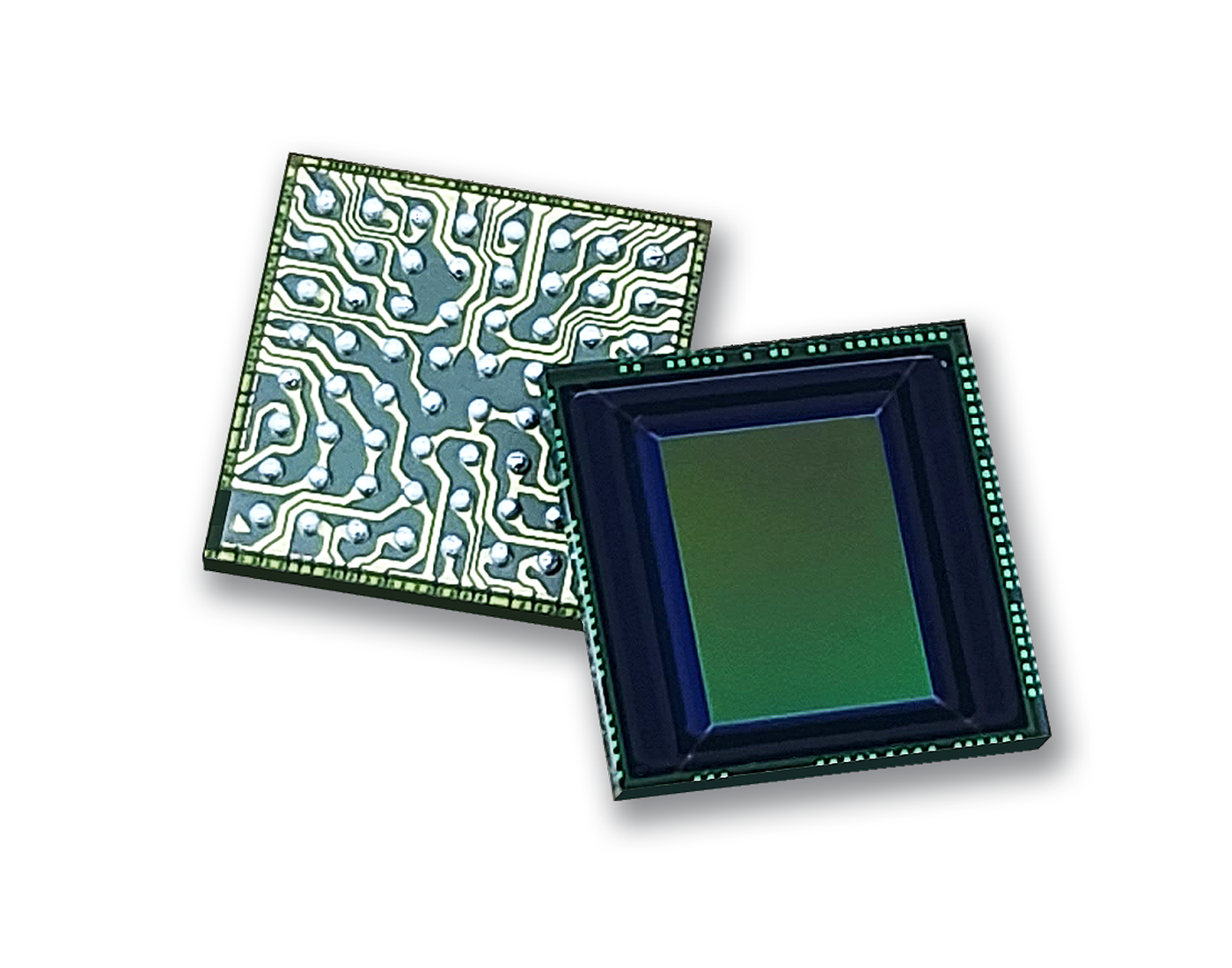

CMOS Image Sensor with HD-Analog Transmitter
- Product Name
- PV3109K
- Tag
- #HiperVis #Rolling Shutter #2.8um #Security #Automotive #1/4" #HD
제품 특징
• 1288x728 effective pixel array with RGB bayer color filters and micro-lens
• Power supply : 1.8~3.3 [V] for HVDD, 3.3[V] for AVDD, 1.2[V] for DVDD
• Input clock frequency : 27 [MHz]
• Interface : HD-Analog
• Image processing on chip : lens shading compensation, gamma correction, defect correction, color correction, NR(2D noise reduction), color interpolation, edge enhancement, brightness, contrast, de-color, auto
black level compensation, auto white balance, auto exposure control, back light compensation
• Programmable frame size, window size and position
• High image quality and high low light performance
• Horizontal/Vertical mirroring
• Automatic flicker cancellation
• 4 overlay functions by using SPI ROM
• I2C /SPI master included
• Software reset
• On-chip phase locked loop ( PLL )
• Crystal input support
기술 사양
| CFA (Chroma) | RGB |
|---|---|
| Frame Rate | 30fps@0.9MP |
| Interface | HD-Analog |
| Optical Format | 1/4" |
| Output Format | HD-Analog |
| Package | CSP |
| Pixel Size | 2.8um |
| Power Requirement | 211mW |
| Resolution | 0.9MP |
| Shutter Type | Rolling Shutter |
| Technology | HiperVis |
| Operating Temperature | -30 to 85℃ |
