Product

픽셀플러스의 혁신적인 기술과 우수한 품질을 갖춘 다양한 제품을 만나 보실 수 있습니다.

제품

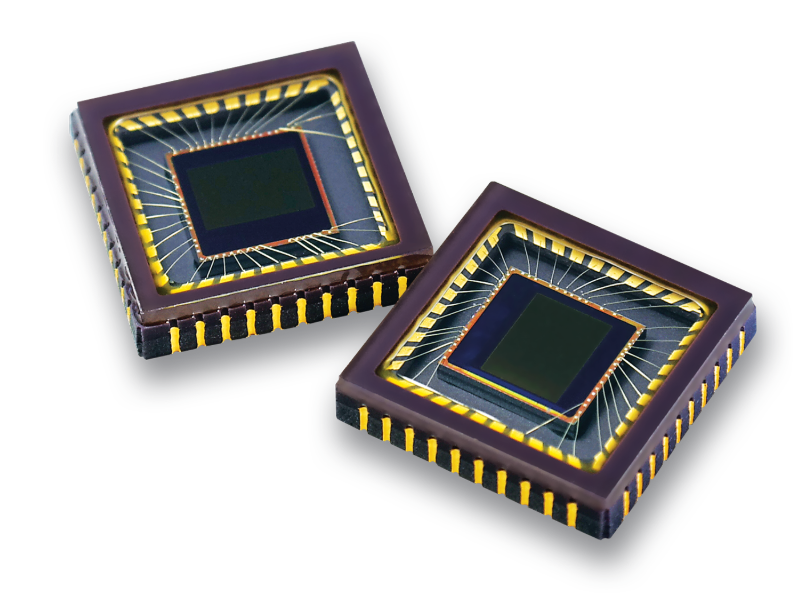

Image Sensors
제품
Product Name Resolution Pixel
Size		 Technology Shutter
Type		 Optical
Format		 Frame
Rate		 CFA
(Chroma)		 Output
Format		 Interface Package Operating
Temp
PKB210K 2MP 3.0um x 3.0um HiperVis
HiperCat 		Global Shutter 1/2.72 inch HDR 60 fps @ 2M MIPI
TBD @ 2M DVP		 RGB MIPI / DVP 4-Lane MIPI / DVP Combo CSP -40~105 [°C] (Ambient)
-40~125 [°C] (Junction)
PG1200K 2MP 2.8um x 2.8um HiperVis
HiperCat 		Global Shutter 1/2.8 inch RGBIR - (MUX)RGB 30fps@2M, 60fps@1M, 240fps@VGA
RGBIR - (MUX)IR 30fps@2M, 60fps@1M, 240fps@VGA
RGBIR - RGB+IR 60fps@2M, 120fps@1M, 480fps@VGA
Mono IR 60fps@2M, 120fps@1M, 480fps@VGA		 BW / RGB / RGBIR MIPI 4-lane MIPI / 800Mbps CSP / COB -40~105[°C] (Ambient)
PC1058D 0.5MP 5.0um x 7.4um HiperVis Rolling Shutter 1/3" 60fps@0.5MP (for NTSC)
50fps@0.5MP (for PAL) 		RGB CVBS(NTSC/PAL) 10/8bit parallel
CVBS(NTSC/PAL)		 40CLCC -30 to 85℃ (Ambient)
PC1058K 0.5MP 5.0um x 6.2um HiperVis Rolling Shutter 1/3" 60fps@0.5MP (for NTSC)
50fps@0.5MP (for PAL)		 RGB CVBS(NTSC/PAL) CVBS(NTSC/PAL)
Digital(960H)		 40CLCC/64CLCC -30 to 85℃ (Ambient)
PC2099K 0.5MP 5.0um x 7.4um HiperVis Rolling Shutter 1/3" 60fps@0.5MP (for NTSC)
50fps@0.5MP (for PAL)		 RGB CVBS(NTSC/PAL) 10/8bit parallel
CVBS(NTSC/PAL)		 40CLCC -30 to 85℃ (Ambient)
PC3089D 0.3MP 6.35um x 7.40um HiperVis Rolling Shutter 1/3" 60fps@0.3MP (for NTSC)
50fps@0.3MP (for PAL)		 RGB CVBS(NTSC/PAL) 10/8bit parallel
CVBS(NTSC/PAL)		 40CLCC -30 to 85℃ (Ambient)
PC4089K 0.3MP 6.35um x 7.40um HiperVis Rolling Shutter 1/3" 60fps@0.3MP (for NTSC)
50fps@0.3MP (for PAL)		 RGB CVBS(NTSC/PAL) 10/8bit parallel
CVBS(NTSC/PAL)		 40CLCC -30 to 85℃ (Ambient)
PC7030N 0.3MP 5.6um HiperVis Rolling Shutte 1/4" 60fps@0.3MP (for NTSC)
50fps@0.3MP (for PAL)		 RGB CVBS(NTSC/PAL) CVBS(NTSC/PAL)
ITU-R.BT656		 40CLCC -40 to 85℃ (Ambient)
PC7070D 0.3MP 5.6um HiperVis Rolling Shutter 1/4" 60fps@0.3MP (for NTSC)
50fps@0.3MP (for PAL)		 RGB CVBS(NTSC/PAL) 10/8-bit parallel with ITU-R. BT656
CVBS (NTSC/PAL)		 40CLCC -30 to 85℃ (Ambient)
PC7080D 0.3MP 5.6um HiperVis Rolling Shutter 1/4" 60fps@0.3MP (for NTSC)
50fps@0.3MP (for PAL)		 RGB CVBS(NTSC/PAL) 10/8-bit parallel with ITU-R. BT656 (CSP Package Only)
CVBS (NTSC/PAL)		 40CSP/40CLCC/40PLCC -40 to 85℃ (Ambient)
PC7090K 0.3MP 5.0um HiperVis Rolling Shutter 1/4.5" 60fps@0.3MP (for NTSC)
50fps@0.3MP (for PAL)		 RGB CVBS(NTSC/PAL) 10/8-bit parallel with ITU-R. BT656
CVBS (NTSC/PAL)		 CSP/40CLCC -30 to 85℃ (Ambient)
PCC030K 0.3MP 3.4um HiperVis Rolling Shutter 1/6.62" 60fps@0.3MP RGB DVP
CVBS		 DVP 8-bit
CVBS		 CSP -40 to 85℃ (Ambient)
PK2130K 1.3MP 3.75um HiperVis Rolling Shutter 1/3" 30fps@1.3MP RGB RGB Bayer 12-bit parallel
MIPI serial interface with 2/4 lane		 CSP/CLCC64 -40 to 85℃ (Ambient)
PK3130K 1.3MP 3.0um HiperVis Rolling Shutter 1/4" 30fps@1.3MP RGB RGB Bayer 12-bit parallel
MIPI serial interface with 2/4 lane		 CSP -40 to 85℃ (Ambient)
PK5210N 2.1MP 3.0um HiperVis Rolling Shutter 1/2.7" 30fps@2.1MP RGB Combine & compressed RGB bayer DVP(Digital Video Parallel) 12-bit
MIPI serial interface with 2 lane		 iBGA/CLCC64 -40 to 105℃ (Ambient)
PO1150K 1.5MP 2.8um HiperVis Rolling Shutter 1/3.6" 15fps @1.5MP (for YUV)
15fps @1.5MP (for Bayer)
30fps @0.3MP (for YUV)		 RGB RGB Bayer 8bits Mono
10bits Raw Bayer		 40PLCC -40 to 80℃ (Ambient)
POC030K 0.3MP 3.4um HiperVis Rolling Shutter 1/6.62" 60fps@0.3MP RGB DVP
Raw RGB Bayer
YCbCr422
Y only		 DVP 8-bit NeoPAC® Encap -40 to 85℃ (Ambient)
PGD030K 0.3MP 3.0um HiperVis
HiperCat 		Global Shutter 1/7.50" 240fps@0.3MP (for MIPI/DVP) BW BW 1/2 lane MIPI
8-bit DVP		 CSP -40 to 85℃ (Ambient)
PV3109K 0.9MP 2.8um HiperVis Rolling Shutter 1/4" 30fps@0.9MP RGB HD-Analog HD-Analog CSP -30 to 85℃ (Ambient)
PV4109K 0.9MP 2.8um HiperVis Rolling Shutter 1/4" 30fps@0.9MP RGB DVP
RGB Bayer		 HD-Analog CSP -40 to 85℃ (Ambient)
PV4209K 2.0MP 2.8um HiperVis Rolling Shutter 1/2.9" 30fps@2MP RGB DVP
RGB Bayer		 HD-Analog 40CLCC/64CLCC -40 to 85℃ (Ambient)
PG7130KA 1.3MP 2.8um HiperVis
HiperCat 		Global Shutter 1/3.92" 60fps@1.3MP BW Y data DVP
MIPI 		1/2/3-Lane MIPI
DVP Combo with RAW
YUV data		 A-CSP / iBGA -40 to 105℃(Ambient)
PK5130KA 1.3MP 3.0um HiperVis Rolling Shutter 1/3.75" 30fps@1.3MP RGB DVP RAW, MIPI RAW DVP Combo,2-Lane MIPI Slim iBGA -40 to 105℃ (Ambient)
PX6130KA 1.3MP 3.0um HiperVis Rolling Shutter 1/3.75" 30fps@1.3MP RGB DVP RAW/YUV
MIPI RAW/YUV		 2-Lane MIPI
DVP Combo with RAW
YUV data		 CSP -40 to 105℃ (Ambient)
PKA210K 2MP 2.8um HiperVis Rolling Shutter 1/2.92" 30fps@2MP RGB-IR MIPI RAW,DVP RAW
DVP Combo,2-Lane MIPI 64CLCC -40 to 85℃ (Ambient)
PCB030KA 0.3MP 5.6um HiperVis Rolling Shutter 1/4" 60fps@0.3MP (for NTSC)
50fps@0.3MP (for PAL)		 RGB CVBS(NTSC/PAL) 10-bit parallel
CVBS(NTSC/PAL)		 NeoPAC® Encap/CSP -40 to 105℃ (Ambient)v
PCB030K 0.3MP 5.6um HiperVis Rolling Shutter 1/4" 60fps@0.3MP (for NTSC)
50fps@0.3MP (for PAL)
60fps : YCbCr422/RGB565/RGB444 @ 54[MHz]
60fps : Bayer @ 27[MHz]		 RGB CVBS(NTSC/PAL) 10/8-bit parallel
CVBS(NTSC/PAL)		 CSP/40CLCC -40 to 85℃ (Ambient)
PK9210K 2MP 2.8um HiperVis Rolling Shutter 1/2.92" 30fps@2MP RGB MIPI RAW 2-Lane MIPI 64CLCC -40~85℃ (Ambient)
PX9210K 2MP 2.8um HiperVis Rolling Shutter 1/2.92" 30fps@2MP RGB DVP RAW/YUV
MIPI RAW/YUV		 4-Lane MIPI / DVP Combo / HD-Analog SmCBGA -40~85℃ (Ambient)
ISP
제품
Product Name Video Input Video Output Operating Temp Power Consumption
PI5008KA

• 4 Lane MIPI Interface
   - Parallel 2Ch Digital Video Input: BT.1120/601, 12-bit Bayer

• Digital
  - BT.1120 8/16-bit, BT.601 8-bit Interface
  - RGB 565/666/888

 		• -40 to 105℃ (Ambient) 900mW@720p(ISPmode)
1241mW@960p(ISPmode)
PI5009K

 • 4 Lane MIPI Interface
   - Parallel 2Ch Digital Video Input: BT.1120/601, 12-bit Bayer

 •  Digital
   - BT.1120 8/16-bit, BT.601 8-bit Interface
   - RGB 565/666/888

 		• -40 to 85℃ (Ambient) 1415mW@720p(AHD Rx mode)
2090mW960p(AHD Rx mode)
PI5009KA

 • 4 Lane MIPI Interface
   - Parallel 2Ch Digital Video Input: BT.1120/601, 12-bit Bayer

 • Digital
   - BT.1120 8/16-bit, BT.601 8-bit Interface
   - RGB 565/666/888

 		• -40 to 105℃ (Ambient) 1415mW@720p(AHD Rx mode)
2090mW960p(AHD Rx mode)
PI6008K

•  MIPI or Parallel Input
   - Up to 1920x1080p@60Hz
   - MIPI CSI-2 1/2/4 Lane @ 600Mbps

•  High Quality Free Down Scaling Engine
  - 1080p/960p to 960p/720p
  - 1080p/960p/720p to SD (NTSC/PAL)

 		• -40 to 85℃ (Ambient) 238 mW (Parallel In/Output)
234 mW (MIPI In/Output)
Tx/Rx
Product Name Input Resolution Output Format Interface Power Requirement
PR2000K • 1080p25/30, 720p25/30/50/60, 960p25/30/50/60 and 480i60, 576i50 • Multi-Channel Time-Multiplexed Video Output with Dual Edge of Clock • Host Interface
• I2C Serial Interface		 • Low Power Consumption
• 340mW (Parallel Output) / 268mW (MIPI Output)
PR2020K • 1080p25/30, 720p25/30/50/60, 960p25/30/50/60 and 480i60, 576i50 • Multi-Channel Time-Multiplexed Video Output with Dual Edge of Clock
- BT1120/BT656 Parallel Output		 • Host Interface
• I2C Serial Interface		 • Low Power Consumption
• 340mW
PR2100K • 1080p25/30, 720p25/30/50/60, 960p25/30/50/60 and 480i60, 576i50 • BT1120/BT656 Parallel Output
- Multi-Channel Time-Multiplexed Video Output with Dual Edge of Clock		 • Host Interface
• I2C Serial Interface		 • Low Power Consumption
• 690/452mW (3.3V/1.8V Parallel Output) / 416mW (MIPI Output) for FHD1080p
PT1000K • 1080p25/30, 720p25/30/50/60 and 480i60, 576i50 • Single/Differential Analog Video Output • Host Interface
• I2C Serial Interface		 • Low Power Consumption
• 0.26 W
